Manufacturer Part No.: 120FEE

Eaton Bussmann BS88 Semiconductor Protection Fuses: 120 Amps, 690/700 Vac, 500 Vdc, Size: 37x70mm

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 5
Minimum Order Quantity: 5
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Bolted Tag High Speed Fuses in compact design
  • Designed and tested to BS88 Part 4 and IEC 60269 Part 4
  • Superior current limiting features
  • Fuses for protection of DC Common Bus, DC Drives, Power Converters/Rectifiers, Starters
  • High-speed clearance of AC/DC faults
  • Low Watts loss in a compact size
  • Operating Class: aR


  • Available Rated Current: 100, 120, 140, 160, 180, 200 Amps
  • Wide range of Accessories: Trip Indicators (with or without clips)
  • Optional Adapters/Micro Switches for remote indication/monitoring
Technical Data
Manufacturer: Eaton Bussmann
Fuse Type: BS88 690 Vac Fuses
Operating Class: aR
Series: FEE
Current Rating (A): 120 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 200 kA
Voltage Rating (Vdc): 500 Vdc
DC Breaking Capacity (kA): 50 kA

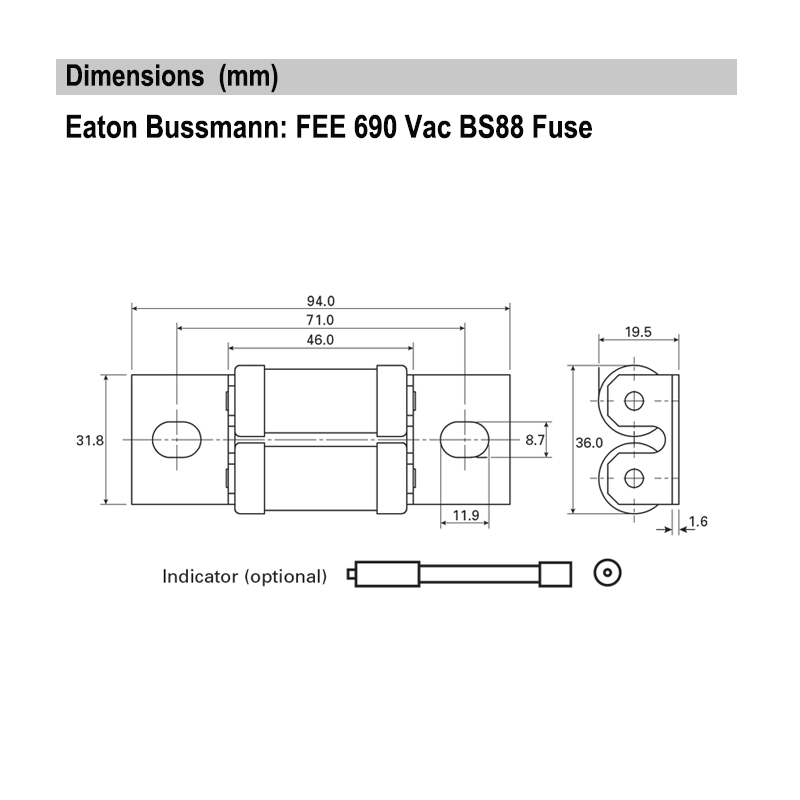

Size: 37x70mm
Pre-Arcing I2t Value A2s: 540
Total I2t Value A2s: 3100
Power Loss (W): 32.0 W
Fuse Blown Indicator: Clip-On - Optional
Standards: BS88-4 / IEC60269-4 / UL / CE
Packaging Quantity (Pcs.): 5
Weight (Grams): 90
