Manufacturer Part No.: 170M1566D
Eaton Bussmann DIN Knife Blade Semiconductor Protection Fuses with Dual Indicator: 80 Amps, 690/700 Vac/200 kA, Operating Class: aR, Size: DIN000/NH000
170M1566D
Product Salient Features:
- Class gR (10-63A); aR (80-315A) Semiconductor Protection Fuses
- Confirming to DIN 43620, IEC 60269-4, CE
- UL recognised, JFHR2, E125085
- CSA Class 1422-30, (53787)
- All Fuses have Dual blown fuse indicator
Optional
- Available Rated Current: 10, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 315 Amps
- Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: 170M15**D
Fuse Type: High Speed Knife Blade
Current Rating (A): 80 Amps
Voltage Rating (Vac): 690/700 Vac
AC Breaking Capacity (kA): 200 kA
Size: DIN000/NH000
Pre-Arcing I2t Value A2s: 380
Total I2t Value A2s: 2550
Power Loss (W): 19.0 W
Fuse Blown Indicator: Dual
Standards: CE/IEC60269-4/UL JFHR2 E125085/ CSA Class 1422-30 (53787)
Packaging Quantity (Pcs.): 10
Weight (Grams): 130
Special Notes

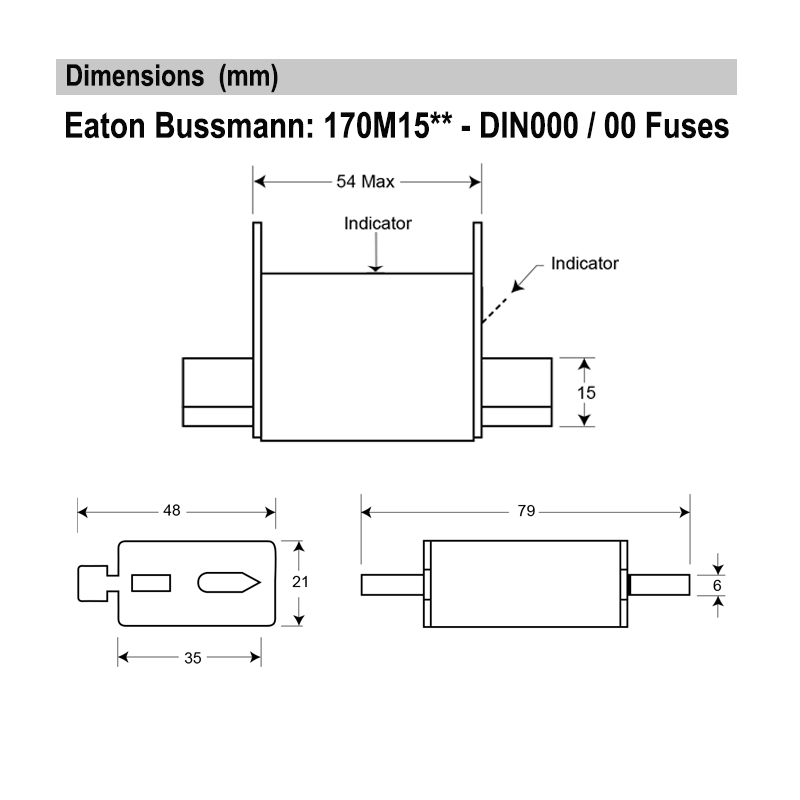

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
