Manufacturer Part No.: FWP-100A22F

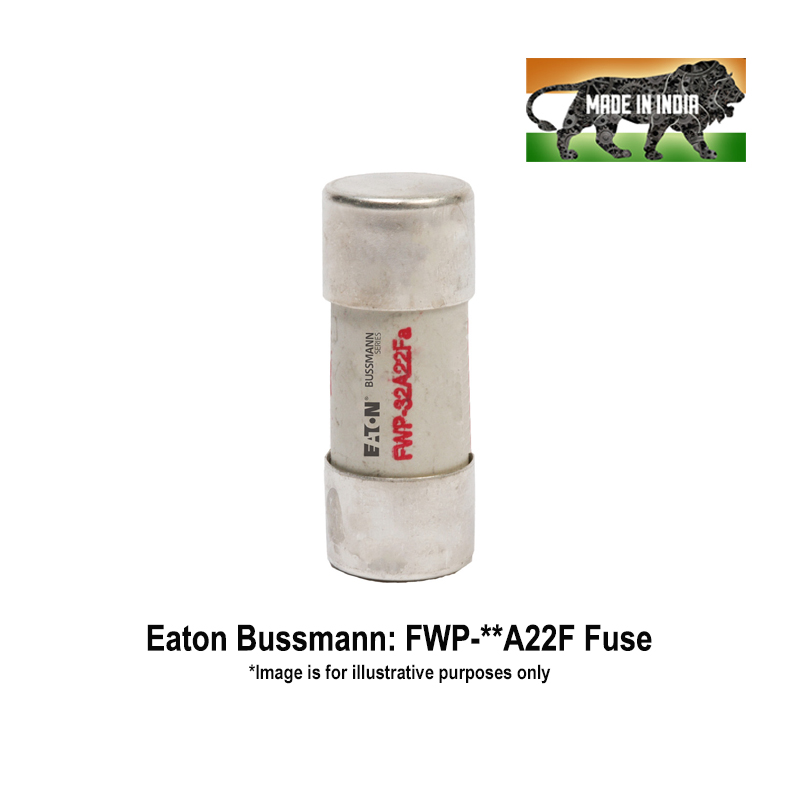

Eaton Bussmann Cylindrical Semiconductor Protection Fuses: 100 Amps, 700 Vac/200 kA, 700 Vdc/50 kA, Operating Class: aR, Size: 22x58mm, without Striker Pin
FWP-100A22F
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- UL Recognized JFHR2, E91958
- CSA Class 1422-30, 1422-90 (53787)
- CE
Optional
- Available Rated Current: 20, 25, 32, 40, 50, 63, 80, 100 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Eaton Bussmann
Series: FWP-*A22F
Fuse Type: Cylindrical aR
Current Rating (A): 100A
Voltage Rating (Vac): 700 Vac
AC Breaking Capacity (kA): 200 kA
Voltage Rating (Vdc): 700 Vdc
DC Breaking Capacity (kA): 50 kA

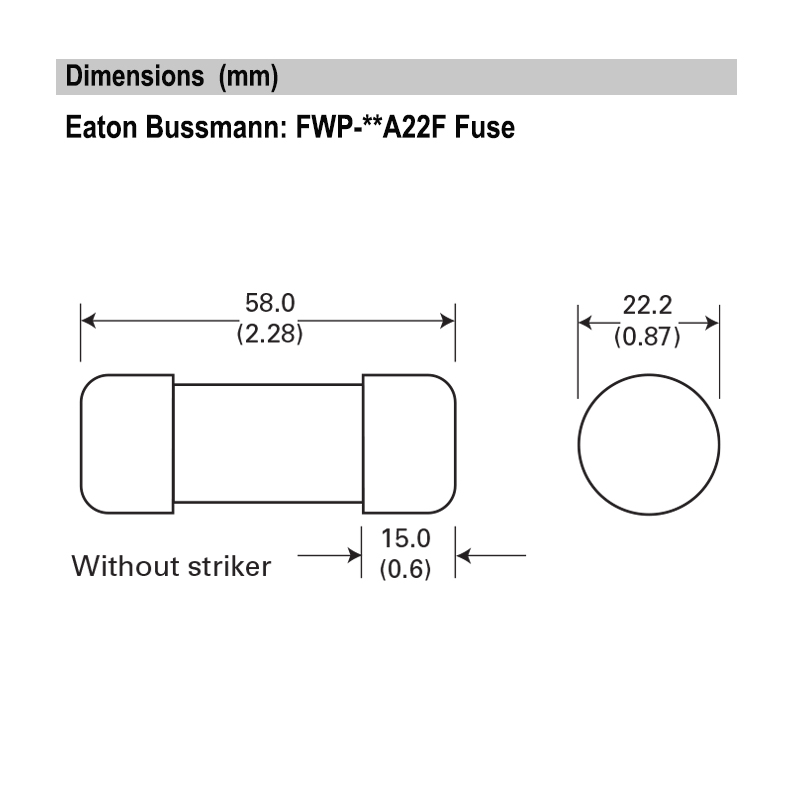

Size: 22x58mm
Pre-Arcing I2t Value A2s: 1100
Total I2t Value A2s: 15,600
Power Loss (W): 16.5 W
Fuse Blown Indicator: NA
Standards: UL Recognized, JFHR2, E91958, CSA Class 1422-30/90, (53787); CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
