Manufacturer Part No.: SPXV30
Littelfuse Cylindrical Solar/PV-Fuses: 30 Amps, 1500 Vdc/30kA, Operating Class: gPV, Size: 10x85mm, without Indicator
SPXV30
Product Salient Features:
- Specifically designed for the protection of Photovoltaic (PV) Systems
- Full range, fast-acting fuse helps eliminate common low-overload faults
- Up to 50 kA interrupting rating
- UL 248-19 Listed (File: E339112), UL 248-1
- IEC 60269-6, RoHS compliant, CE
Optional
- Available Rated Current: 1, 2, 2.25, 2.5, 3, 3.5, 4, 4.5, 5, 6, 8, 10, 12, 15, 16, 20, 25, 30, 35, 40, 45, 50, 55, 60 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Littelfuse
Series: SPXV
Fuse Type: Cylindrical PV
Current Rating (A): 30A
Voltage Rating (Vdc): 1500 Vdc
DC Breaking Capacity (kA): 30 kA

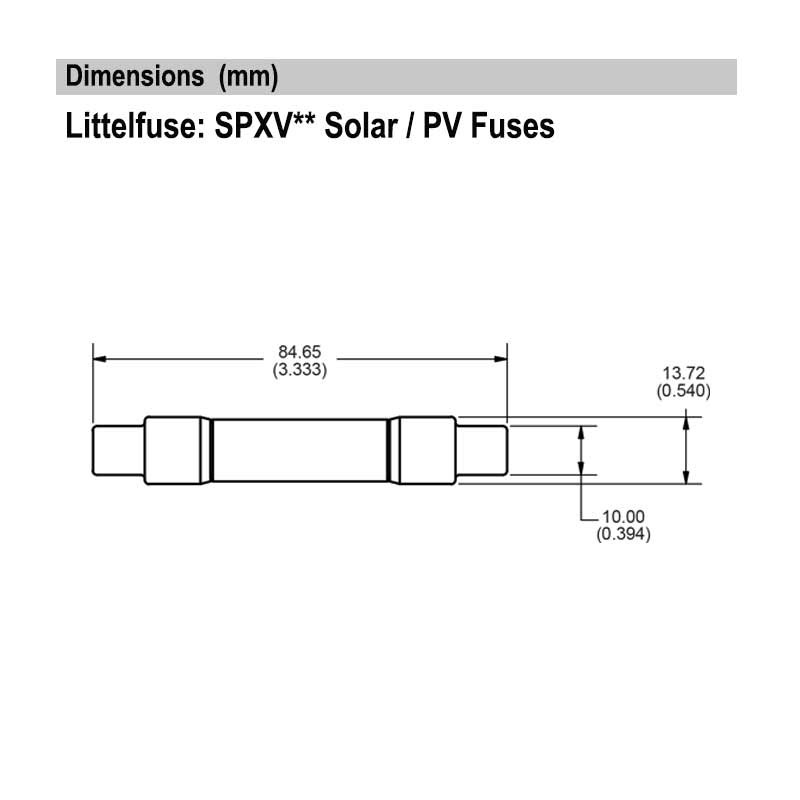

Size: 10x85mm
Pre-Arcing I2t Value A2s: 3770
Total I2t Value A2s: 6204
Power Loss (W): 7.16 W
Fuse Blown Indicator: NA
Standards: UL 248-19 Listed (File: E339112), UL 248-1, IEC 60269-6, RoHS Compliant, CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
