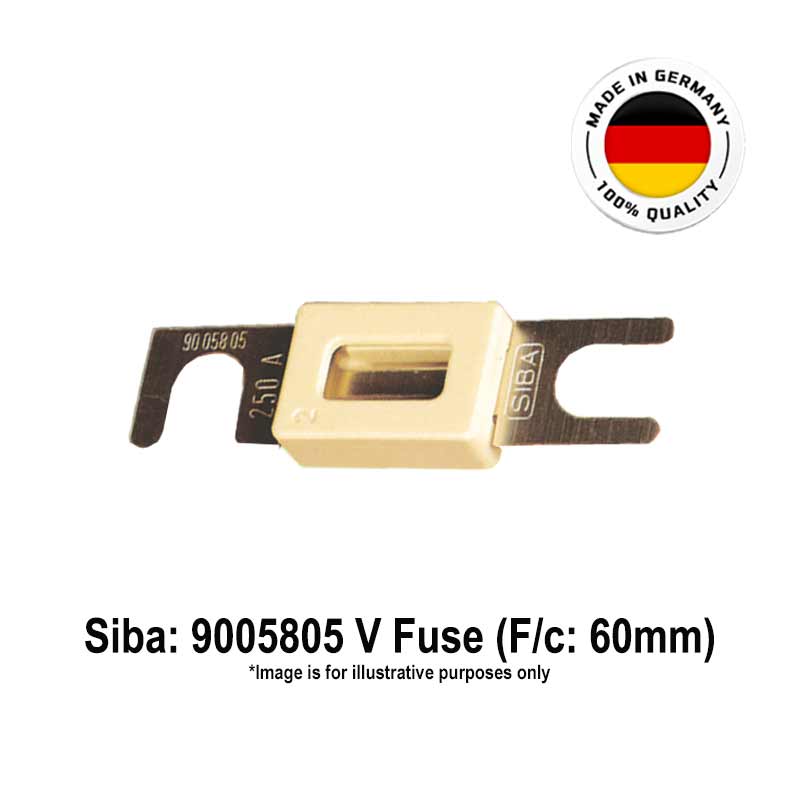

Manufacturer Part No.: 9005805.100A
Siba V-Fuses (Enclosed Type): 100 Amps, 80 Vdc, Fixing Centre: 60mm
9005805.100A
Product Salient Features:
- V-Fuses for Battery Powered Industrial Trucks/Forklifts, Golf Carts, ATV, etc.
- Confirming to DIN 43560 Part-1 Standards
- Fuse Bases/Holders are available on request at extra cost
Optional
- Available Rated Current: 20, 25, 35, 40, 50, 63, 70, 80, 100, 125, 135, 150, 160, 175, 180, 200, 225, 250, 275, 300, 315, 325, 350, 355, 375, 400, 425, 500 Amps
- Fuse-Base available
Technical Data
Manufacturer: Siba
Series: 9005805
Fuse Type: V-Fuse (Enclosed Type)
Current Rating (A): 100 Amps
Voltage Rating (Vdc): 80 Vdc
Power Loss (W): 6.0 W
Cold Resistance: 0.45 mOhms
Fuse Blown Indicator: NA
Standards: DIN 43560-1
Packaging Quantity (Pcs.): 20
Weight (Grams): 20
Special Notes

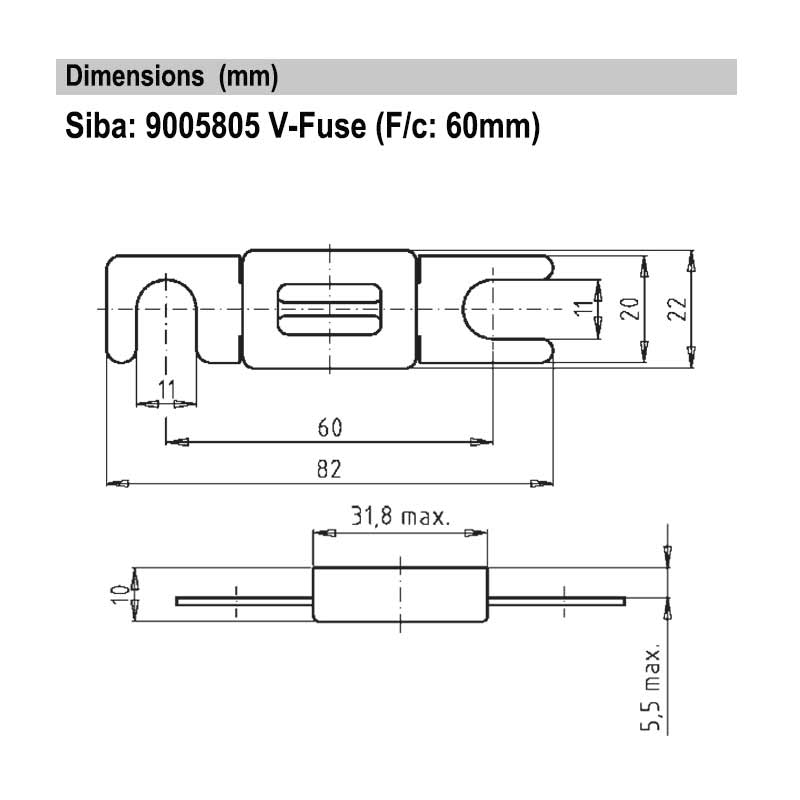

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
