Manufacturer Part No.: 004311005 D01UQ16A

ETI Ultra Quick D/Bottle Type Semiconductor Protection Fuses: 16 Amps, 400 Vac/50 kA, 250 Vdc/8 kA, Operating Class: gR, Type: D01, Size: E14

Manufacturer: ETI
Country of Origin : Slovenia EU
Technical Datasheet:
Packaging Quantity: 10
Minimum Order Quantity: 5
Order in Multiples of Quantity: 5
Required Quantity:
Price on Request

Product Salient Features:

  • Class gR Semiconductor Protection Fuses
  • Confirming to IEC 60269-4-1, VDE 0636
  • All Fuses have blown fuse indicator
  • Fuse Bases/Holders and Accessories are available on request at extra cost

Optional

  • Available Rated Current: 2, 4, 6, 10, 16 Amps
  • Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Fuse Type: Ultra Quick D0/Bottle
Operating Class: gR
Series: D - 004311***
Current Rating (A): 16A
Voltage Rating (Vac): 400 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 250 Vdc
DC Breaking Capacity (kA): 8 kA
Size: E14 / D I
Pre-Arcing I2t Value A2s: 35
Total I2t Value A2s: 200
Power Loss (W): 5.3 W
Fuse Blown Indicator: Yes
Standards: IEC60269-4-1 VDE0636
Packaging Quantity (Pcs.): 10
Weight (Grams): 6
Special Notes

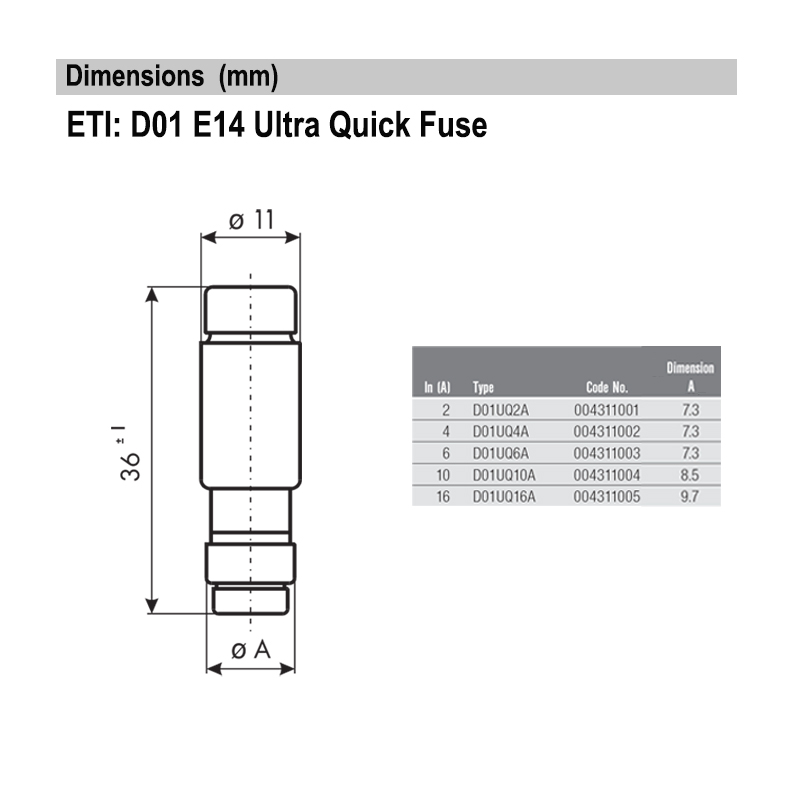

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
